Home Centro de mecanizado CNC vertical - 5 ejes"CHIRON" MILL 6000 Centro de mecanizado CNC vertical - 5 ejes - Online auction

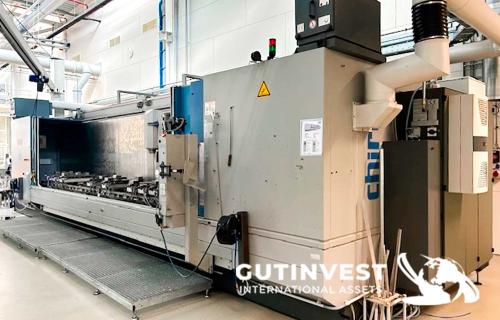

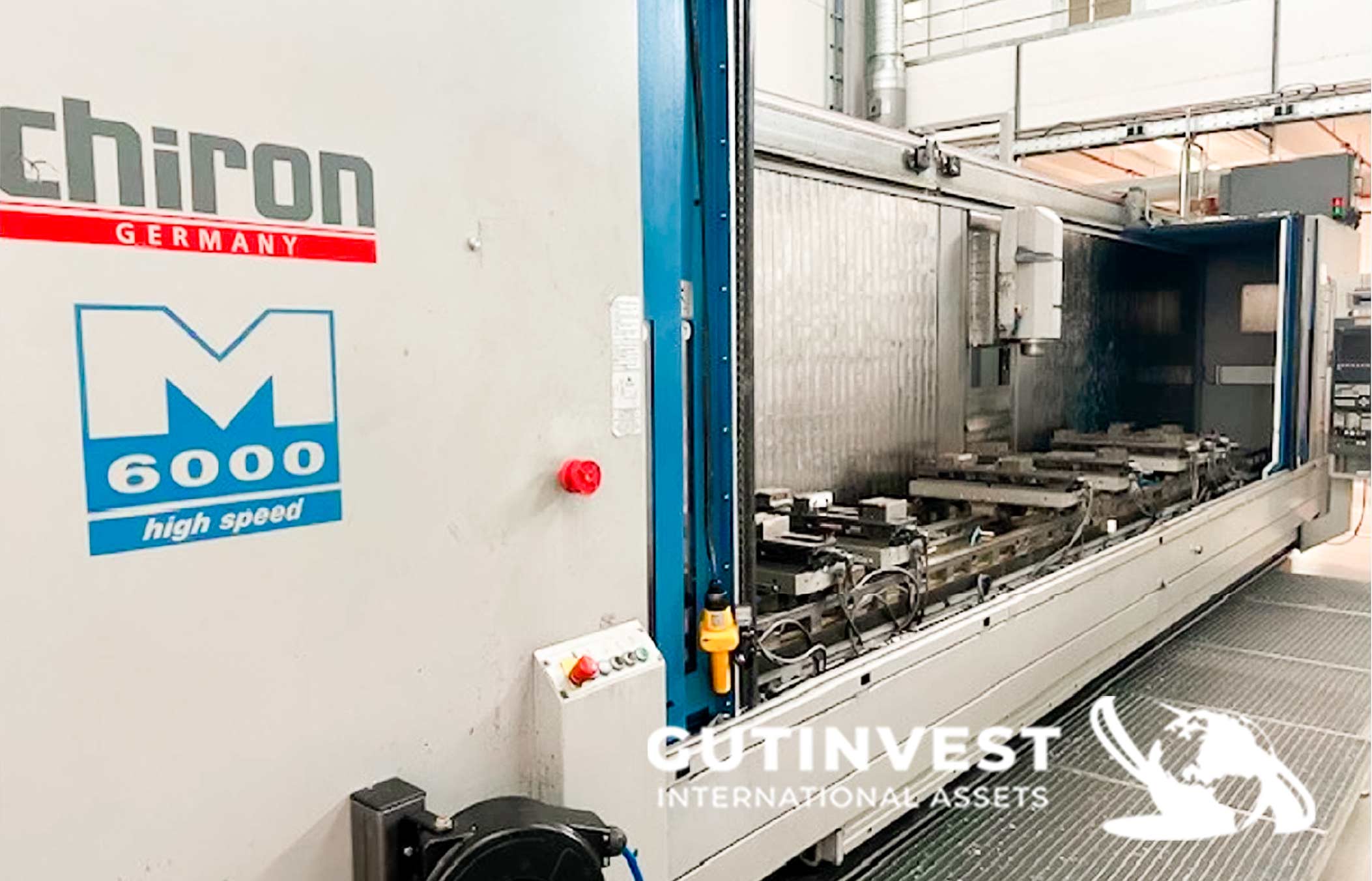

ManufacturerChiron ModelMILL 6000 Year2004 - 2013 ObservationsVertical CNC Machining Center - 5 Axis
Operating Hours: 77.374 h
Technical Specifications:

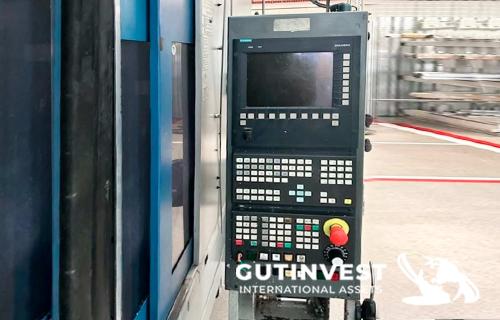

Siemens 840D (PCU50, NCU572.4)
NC Swivel Head
High-Speed Package:
D Spindle Motor: 12,000 rpm, 140 Nm
Travels X: 6,000 mm / Y: 630 mm
Rapid travel X/Y/Z: 60 m/min
Chip-to-chip time: 3.0 seconds (3.3 seconds DIN) vertically and 4.7 seconds vertically. (5.0 s DIN) horizontal
Production package:
Scraper belt conveyor, discharge height 1050 mm

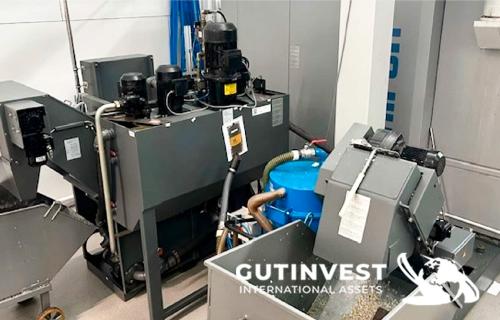

Internal coolant preparation
KNOLL VRF250 rotary vacuum filter (steel, cast iron, aluminum, plastic, brass)
High pressure 70 bar with high-pressure pump and variable valve
Wash gun per pendulum section
Emulsion mist extraction, two extraction fans, each with 800 m²/h
Sight glasses rotating left and right (1400 mm from the center of the machine)
Automatic loading doors
Central separator for pendulum machining

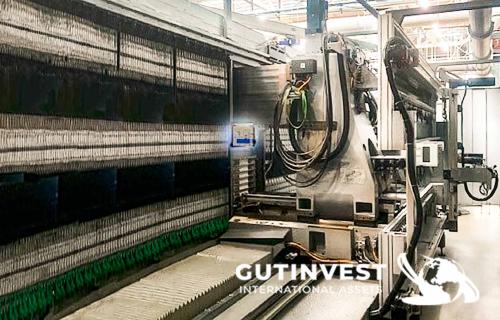

92 HSK-A63 tool positions (bottom magazine)
Additional equipment:
5-axis milling package
Air blower
Tool life monitoring
Additional V24 RS232 in the control cabinet
BDE/MDE interface (statuses: machine on, machine running, workpiece counter)
Marposs (Brankamp) CMS100 collision monitoring system
3D machine model for kinematic simulation in the CAM programming system
210 bar hydraulic power unit, 2 clamping circuits, independent system clamping pressure for each pendulum field, clamping pressure control

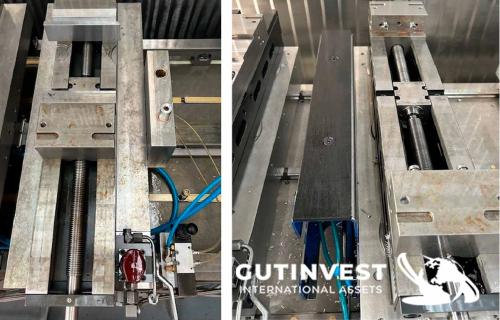

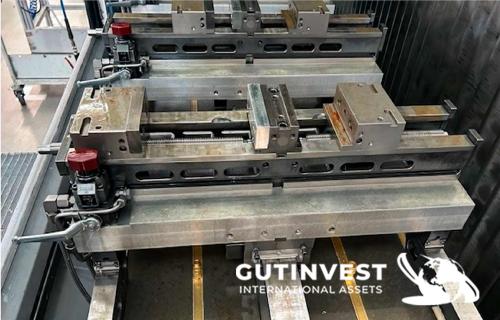

KOHN linear clamping system
8 KOHN Multi 2000 MFS 125/680 HD hydraulic jaws
Two-piece operator passage across the entire working width of 6000 mm
Note on machine design:
Machining of long workpieces up to a maximum of 6000 mm
Machining Horizontally from the front face (5th side) with a rotating head (right/left).
Pendulum machining using a center divider, max. workpiece length: 1773 mm with SK machining on both ends (tool length: 120 mm).
4 double hydraulic jaws (fixed center jaw) per pendulum section.
Positioning and clamping via a linear system (hydraulic release, mechanical clamping).
The machine is equipped with a pneumatically extendable work stop on each side of the pendulum, as well as two separately controllable pneumatic lifts. These lifts allow long workpieces to be placed in an inclined position after machining (to drain water from the profiles) in a first step and removed from the jaws in a second step for ergonomic handling.
Note on the machine's condition:
The machine was completely overhauled by the manufacturer Chiron in 2013.
The last spindle change was performed in March 2021 (spindle hours approx. 7,300 h).
The machine has been maintained, repaired, and overhauled annually by the manufacturer in accordance with the latest technical standards (preventive maintenance). The last inspection was performed in January 2024.
There are currently no known defects on the machine.
The machining process with the KOHN linear clamping system can be viewed on the new, identically constructed machine (manufactured in 2023).
No. of items: 1
Dismantling and loading costs not included.
